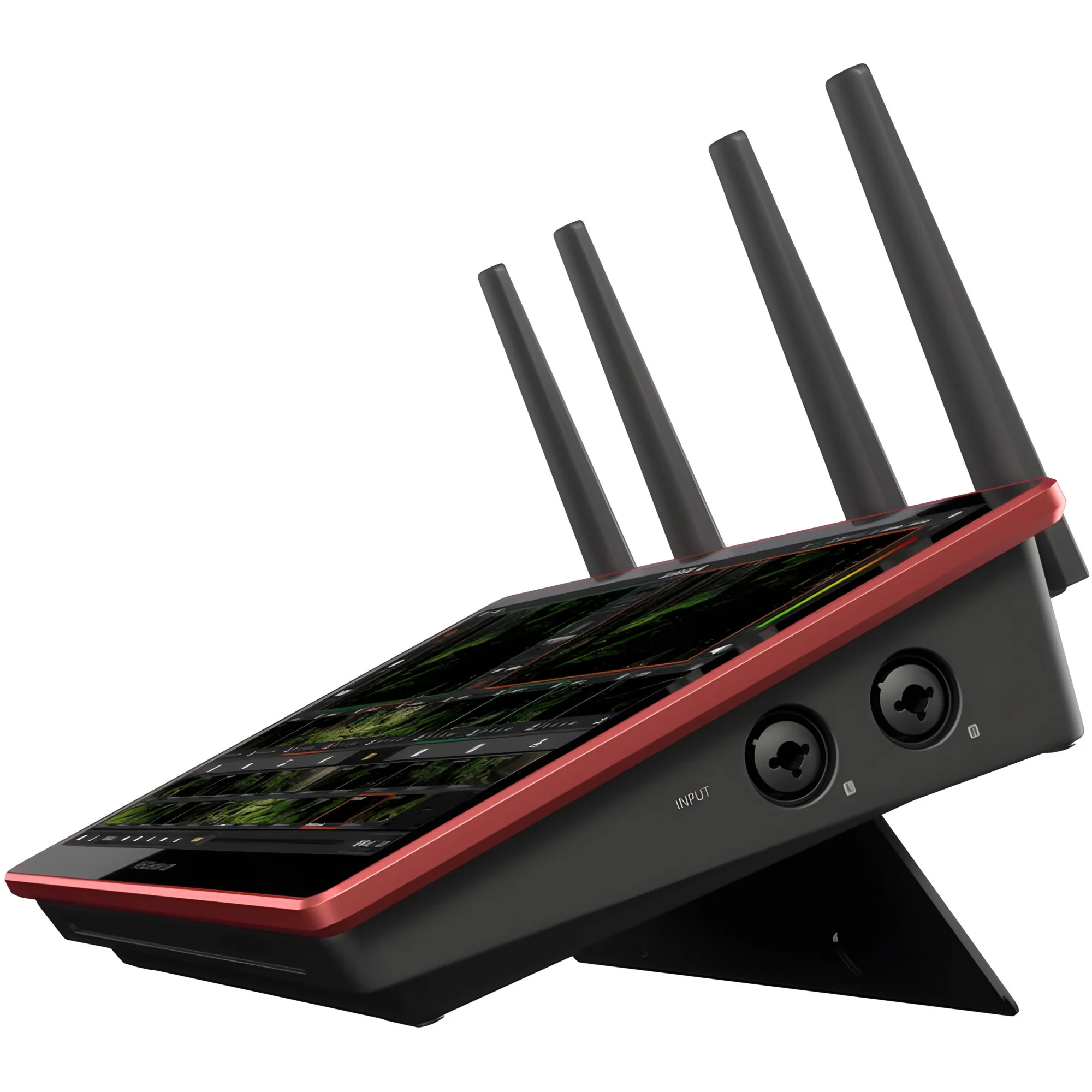

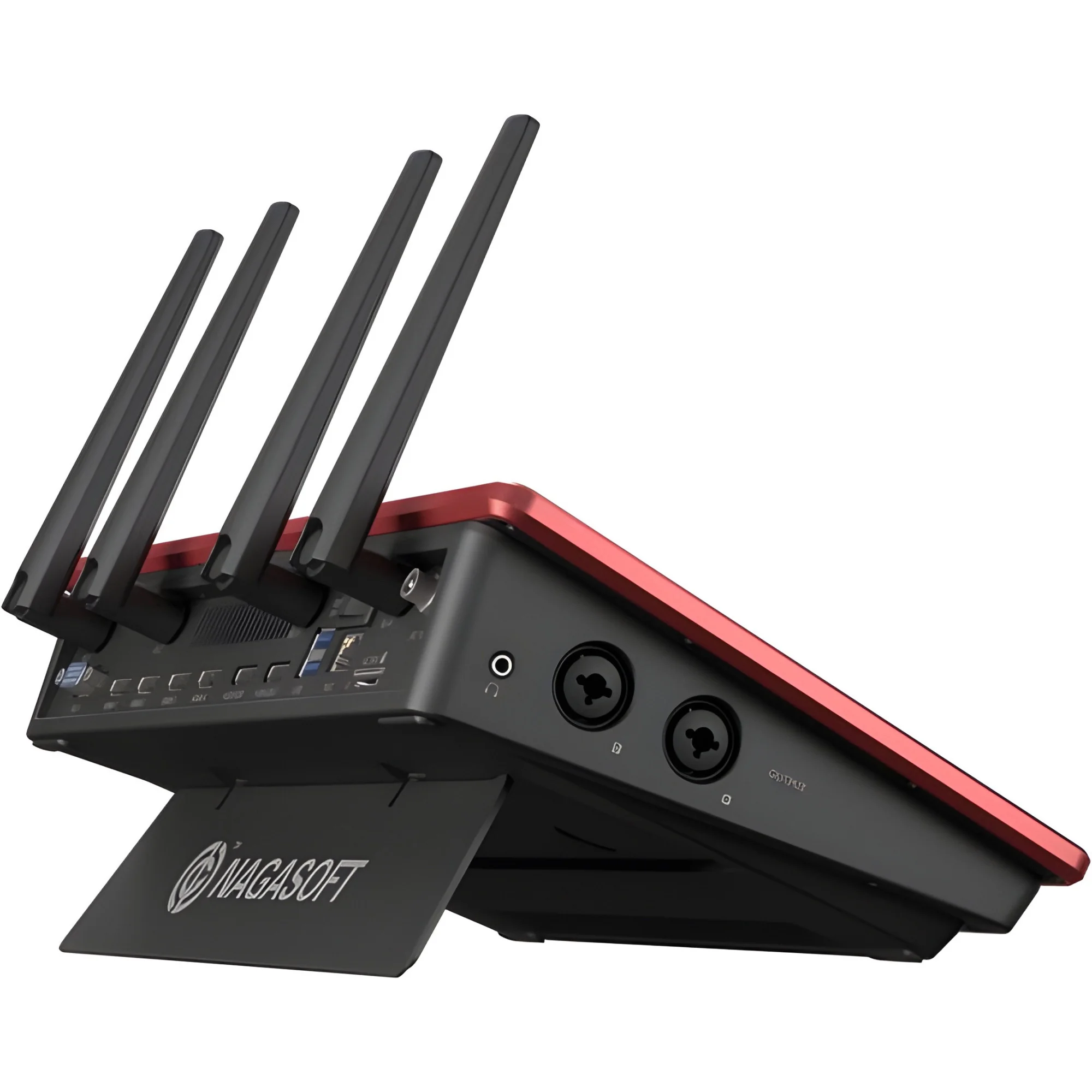

Nagasoft NSCaster X2s

Nagasoft NSCaster X2s live streaming systems provide complete multi-camera production and broadcasting solutions. Equipped with multi-channel video switching, 3D trackless virtual scenes, real-time GPU chroma keying, built-in audio mixing, and PTZ camera controls, Nagasoft enables seamless direct streaming to platforms like YouTube and Facebook. Suitable for sports broadcasting, corporate webcasts, live worship, and studio productions.

Key Features:

• 13.3-inch FHD Capacitive Touchscreen: High-brightness 1920×1080 display designed for full fingertip operation, live monitoring, and multi-view channel control.

• Advanced Multi-Channel Inputs: Up to 8 total production channels, supporting up to 4 simultaneous 4K physical video inputs via mixed SDI/HDMI interfaces alongside IP camera streams.

• Integrated 5G Network Bonding: Built-in 5G/4G cellular module with SIM support, Ethernet, and dual-band Wi-Fi to bond connections for stable, high-bitrate remote streaming.

• Low-Latency NDI|HX & SRT Native Support: Deep integration for IP workflows, enabling IP video input, tally control, remote camera routing, and low-latency transport over public networks.

• Full 4K Encoding & Decoding Engine: Hardware H.264/H.265 processing supporting up to 4K @ 60fps project resolution with bitrates up to 200Mbps.

• Real-Time GPU Hardware Chroma Keying: Instant green/blue screen replacement with fine edge detail, color correction, and seamless 3D virtual studio background integration.

• Pro Audio Inputs with Phantom Power: Dual balanced XLR/TRS combo ports with line/mic switching, 48kHz stereo sampling, and a software multi-channel audio mixer.

• Multi-Camera PTZ Protocol Control: Built-in camera control interface supporting VISCA-over-IP, ONVIF, and NDI|HX to manipulate PTZ movement, zoom, and focus presets.

• Interactive Live Graphics & Scoreboards: Enhanced overlay engine supporting dynamic lower thirds, full-screen graphics, PIP layouts, and live customizable sports scoreboards.

• Independent Channel ISO Recording: Simultaneously records individual input feeds and the final PGM output directly to a high-capacity internal SSD or external TF card with power-loss protection.

Nagasoft NSCaster X2

Nagasoft live streaming systems provide complete multi-camera production and broadcasting solutions. Equipped with multi-channel video switching, 3D trackless virtual scenes, real-time GPU chroma keying, built-in audio mixing, and PTZ camera controls, Nagasoft enables seamless direct streaming to platforms like YouTube and Facebook. Suitable for sports broadcasting, corporate webcasts, live worship, and studio productions.

Key Features:

• Integrated Touchscreen Display: Features a built-in Full HD capacitive touchscreen (11.6” to 13.3”) for intuitive video switching, monitoring, and live control without needing extra displays.

• Multi-Channel Video Inputs: Supports flexible combinations of physical inputs (12G/3G-SDI, HDMI up to 4K), IP cameras, and local media channels.

• Real-Time GPU Chroma Keying: Hardware-accelerated green and blue screen keying with flexible threshold adjustments and 3D trackless virtual studio integration.

• Professional Built-In Audio Mixer: Equipped with 2-channel XLR/TRS combo balanced inputs/outputs, supporting multi-channel audio routing, level control, and delay adjustment.

• Multi-Protocol Live Streaming: Direct encoding to RTMP, RTSP, SRT, UDP, and NDI|HX for one-click simultaneous streaming to multiple platforms (YouTube, Facebook, Twitch).

• Cellular Bonding & Wireless Connectivity: Integrated Wi-Fi, Gigabit Ethernet, and 4G/5G mobile SIM support (including network bonding) for reliable field broadcasting.

• Integrated PTZ Camera Control: Remotely control PTZ camera movement, zoom, focus, and aperture directly from the interface via VISCA over IP, ONVIF, or NDI|HX.

• Built-in CG Graphics & Scoreboards: Live overlay engine supporting customizable lower thirds, logos, picture-in-picture (PiP), and preset sports scoreboards.

• Multi-Channel Recording & Internal SSD: Records PGM output and individual raw input channels simultaneously to internal high-speed SSD storage with power-off protection.

• Compact All-in-One Form Factor: Portable studio unit combining video switcher, audio mixer, character generator, streaming encoder, and monitor into a single lightweight chassis.
